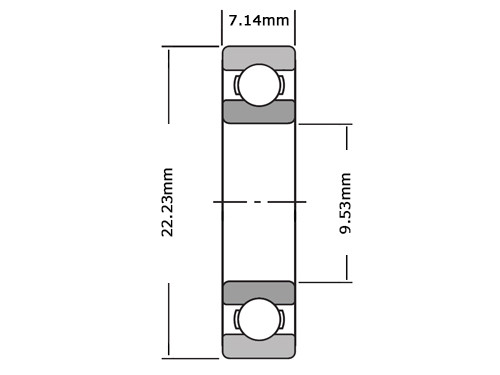

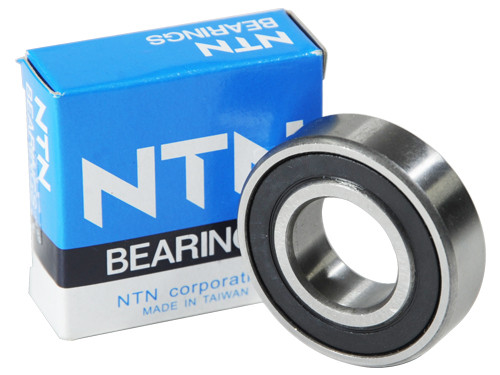

NTN Kogellager R6 LLU 2AS (9.53x22.23x7.14mm)
Product information
If you have any questions about the NTN Kogellager R6 LLU 2AS (9.53x22.23x7.14mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO614929
O.E.M. Nummer
Nein
NTN, Kogellager, R6, LLU, 2AS, 9.53x22.23x7.14mm.
Brand
NTN
Typ
R6
Seal
2RS (2 sides rubber seal)
Material
Nein
Materiaal Type
Nein
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C0 (Standard)
Asdiameter (mm)
9.53
Buitendiameter (mm)
22.23
Dikte (mm)
7.14
Vetsoort
Nein
Temperatuurbereik
-40º tot +120º C
Statisch Draaggetal (N)
1400
Dynamisch Draaggetal (N)
3300
Grenstoerental (tr/min)
24000
Referentietoerental (tr/min)
Nein
EAN
4547359496642
Gewicht
0.0480
