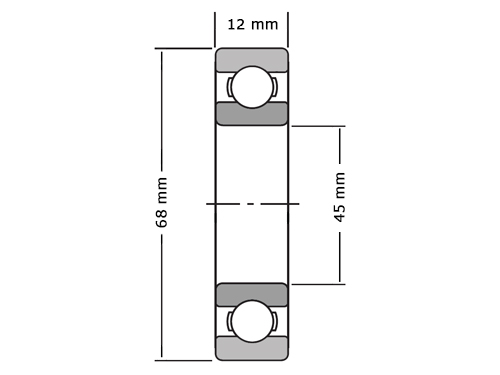

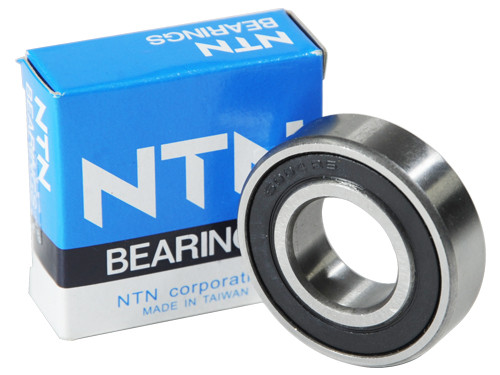

NTN Kogellager 6909 LLU C3 5K (45x68x12mm)
Product information
This product is made from Staal.
If you have any questions about the NTN Kogellager 6909 LLU C3 5K (45x68x12mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO795248
O.E.M. Nummer
Nein
2RS, kanten, kunststof, afdichting, NTN, Kogellager, 6909, LLU, C3, 5K, 45x68x12mm.
Brand
NTN
Typ
6909/61909
Seal
2RS (2 sides rubber seal)
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Messing
Boring
Cilindrisch
Details
Nein
Tolerance Class
C3
Asdiameter (mm)
45
Buitendiameter (mm)
68
Dikte (mm)
12
Vetsoort
Nicht zutreffend
Temperatuurbereik
-25º tot +110º C
Statisch Draaggetal (N)
10400
Dynamisch Draaggetal (N)
14500
Grenstoerental (tr/min)
5600
Referentietoerental (tr/min)
Nein
EAN
4547359421613
Gewicht
0.1340
