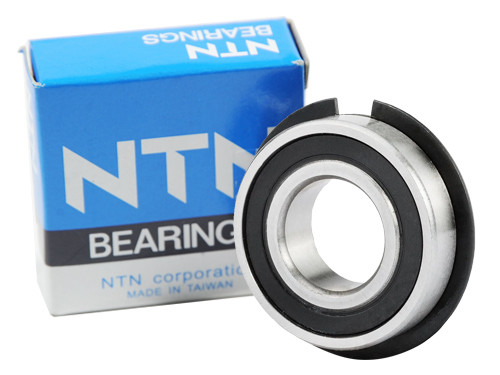

NTN Kogellager 6904 LLU NR 2AS (20x37x9mm)
Product information
This product is made from Staal.
If you have any questions about the NTN Kogellager 6904 LLU NR 2AS (20x37x9mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO768292
O.E.M. Nummer
Nein
2RS, kanten, kunststof, afdichting, NTN, Kogellager, 6904, LLU, NR, 2AS, 20x37x9mm.
Brand
NTN
Typ
6904/61904
Seal
2RS (2 sides rubber seal)
Material
Staal
Materiaal Type
Nein
Buitenring
Groef in de buitenring met snapring
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C0 (Standard)
Asdiameter (mm)
20
Buitendiameter (mm)
37
Dikte (mm)
9
Vetsoort
Nein
Temperatuurbereik
-25º tot +110º C
Statisch Draaggetal (N)
3700
Dynamisch Draaggetal (N)
7050
Grenstoerental (tr/min)
12000
Referentietoerental (tr/min)
Nein
EAN
4547359418705
Gewicht
0.0360
