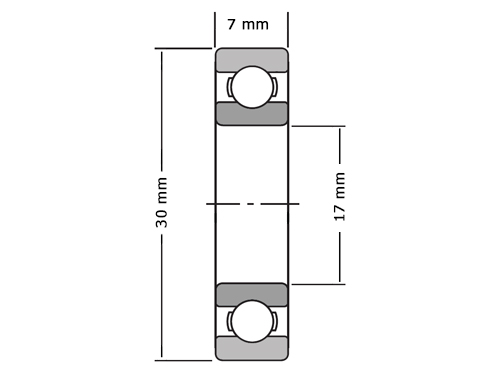

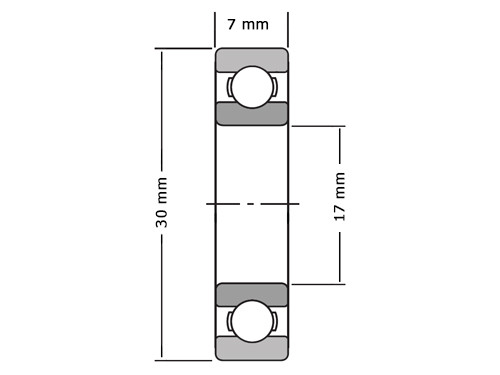

NTN Kogellager 6903 JRX LLB C3 2AS (17x30x7mm)
Product information
This product is made from Staal.
If you have any questions about the NTN Kogellager 6903 JRX LLB C3 2AS (17x30x7mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO799552
O.E.M. Nummer
Nein
2RS, kanten, kunststof, afdichting, NTN, Kogellager, 6903, JRX, LLB, C3, 2AS, 17x30x7mm.
Brand
NTN
Typ
6903/61903
Seal
2RS (2 sides rubber seal)
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C3
Asdiameter (mm)
17
Buitendiameter (mm)
30
Dikte (mm)
7
Vetsoort
Nicht zutreffend
Temperatuurbereik
-25º tot +110º C
Statisch Draaggetal (N)
2580
Dynamisch Draaggetal (N)
5150
Grenstoerental (tr/min)
22000
Referentietoerental (tr/min)
Nein
EAN
4547359586800
Gewicht
0.0200
