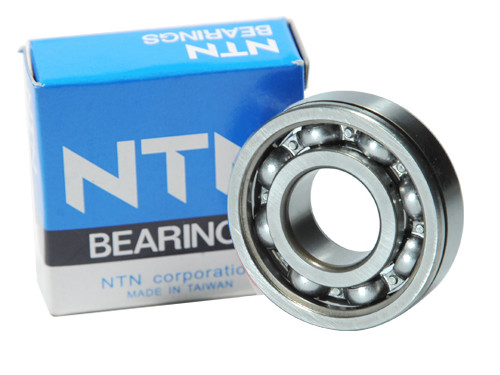

NTN Kogellager 6903 JRX (17x30x7mm)
Product information
This product is made from Staal.
If you have any questions about the NTN Kogellager 6903 JRX (17x30x7mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO965812
O.E.M. Nummer
Nein
NTN, Kogellager, 6903, JRX, 17x30x7mm.
Brand
NTN
Typ
6903/61903
Seal
No seal
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C0 (Standard)
Asdiameter (mm)
17
Buitendiameter (mm)
30
Dikte (mm)
7
Vetsoort
Nicht zutreffend
Temperatuurbereik
-40º tot +120º C
Statisch Draaggetal (N)
2580
Dynamisch Draaggetal (N)
5150
Grenstoerental (tr/min)
22000
Referentietoerental (tr/min)
Nein
EAN
Nein
Gewicht
0.0180
