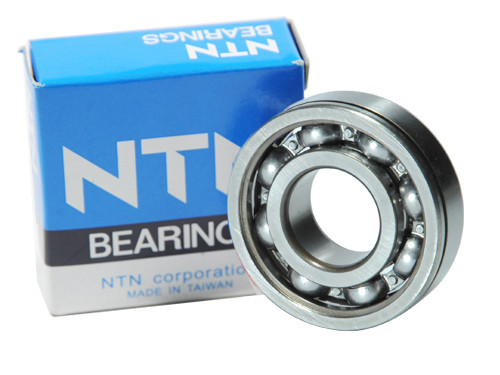

NTN Kogellager 6804 JR C3 (20x32x7mm)
Product information
This product is made from Staal.
If you have any questions about the NTN Kogellager 6804 JR C3 (20x32x7mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO463888
O.E.M. Nummer
Nein
NTN, Kogellager, 6804, JR, C3, 20x32x7mm.
Brand
NTN
Typ
6804/61804
Seal
No seal
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C3
Asdiameter (mm)
20
Buitendiameter (mm)
32
Dikte (mm)
7
Vetsoort
Nicht zutreffend
Temperatuurbereik
-40º tot +120º C
Statisch Draaggetal (N)
2470
Dynamisch Draaggetal (N)
4450
Grenstoerental (tr/min)
21000
Referentietoerental (tr/min)
Nein
EAN
Nein
Gewicht
0.0160
