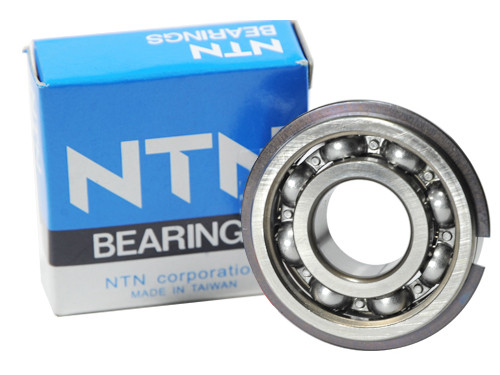

NTN Kogellager 6409 NR (45x120x29mm)
Product information
This product is made from Staal.
If you have any questions about the NTN Kogellager 6409 NR (45x120x29mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO908316
O.E.M. Nummer
Nein
Zonder, afdichting, NTN, Kogellager, 6409, NR, 45x120x29mm.
Brand
NTN
Typ
6330
Seal
No seal
Material
Staal
Materiaal Type
Nein
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C0 (Standard)
Asdiameter (mm)
45
Buitendiameter (mm)
120
Dikte (mm)
29
Vetsoort
Nein
Temperatuurbereik
-40º tot +120º C
Statisch Draaggetal (N)
45000
Dynamisch Draaggetal (N)
85500
Grenstoerental (tr/min)
6300
Referentietoerental (tr/min)
Nein
EAN
4547359405200
Gewicht
1.6100
