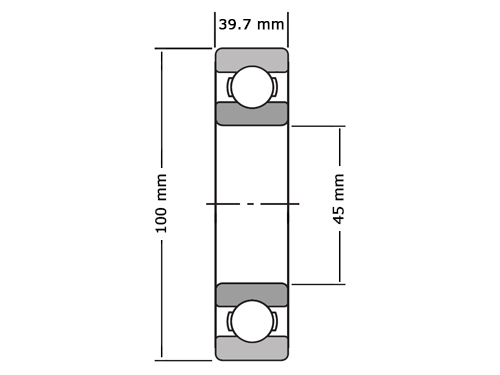

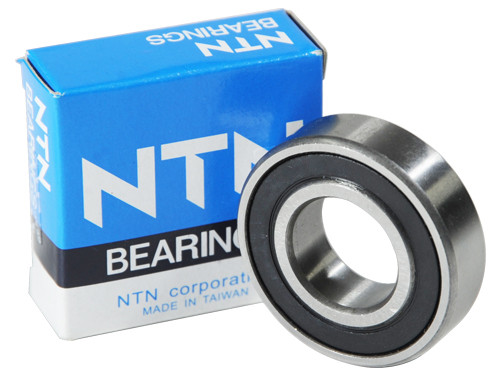

NTN Kogellager 63309 LLU 2AS (45x100x39.7mm)
Product information
This product is made from Staal.
If you have any questions about the NTN Kogellager 63309 LLU 2AS (45x100x39.7mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO546214
O.E.M. Nummer
Nein
NTN, Kogellager, 63309, LLU, 2AS, 45x100x39.7mm.
Brand
NTN
Typ
63305
Seal
2RS (2 sides rubber seal)
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C0 (Standard)
Asdiameter (mm)
45
Buitendiameter (mm)
100
Dikte (mm)
39.7
Vetsoort
Nicht zutreffend
Temperatuurbereik
-40º tot +120º C
Statisch Draaggetal (N)
32000
Dynamisch Draaggetal (N)
53000
Grenstoerental (tr/min)
4700
Referentietoerental (tr/min)
Nein
EAN
4547359583007
Gewicht
1.2800
