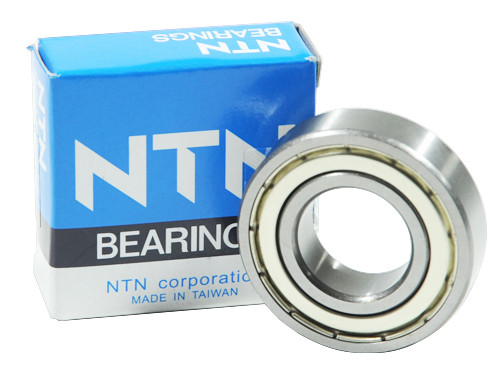

NTN Kogellager 6314 Z (70x150x35mm)
Product information
This product is made from Staal.
If you have any questions about the NTN Kogellager 6314 Z (70x150x35mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO704612
O.E.M. Nummer
Nein
kant, stalen, afdichting, NTN, Kogellager, 6314, 70x150x35mm.
Brand
NTN
Typ
6314
Seal
Z (1 side metal shield)
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C0 (Standard)

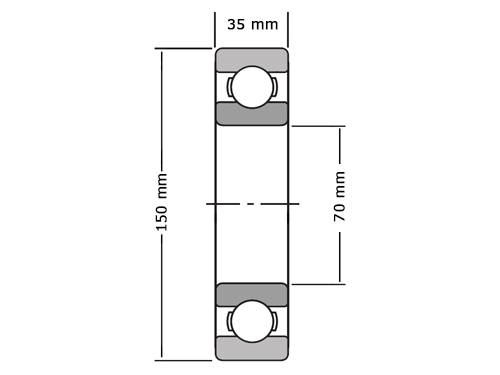

Asdiameter (mm)
70
Buitendiameter (mm)
150
Dikte (mm)
35
Vetsoort
Nicht zutreffend
Temperatuurbereik
-40º tot +120º C
Statisch Draaggetal (N)
68000
Dynamisch Draaggetal (N)
115000
Grenstoerental (tr/min)
4600
Referentietoerental (tr/min)
Nein
EAN
4547359399622
Gewicht
2.5850
