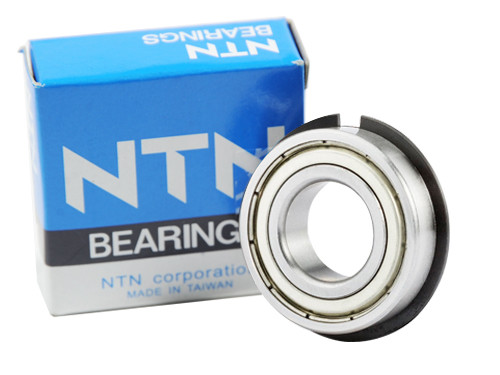

NTN Kogellager 6313 Z NR (65x140x33mm)
Product information
This product is made from Staal.
If you have any questions about the NTN Kogellager 6313 Z NR (65x140x33mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO849877
O.E.M. Nummer
Nein
kant, stalen, afdichting, NTN, Kogellager, 6313, NR, 65x140x33mm.
Brand
NTN
Typ
6313
Seal
Z (1 side metal shield)
Material
Staal
Materiaal Type
Nein
Buitenring
Groef in de buitenring met snapring
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C0 (Standard)
Asdiameter (mm)
65
Buitendiameter (mm)
140
Dikte (mm)
33
Vetsoort
Nein
Temperatuurbereik
-40º tot +120º C
Statisch Draaggetal (N)
60000
Dynamisch Draaggetal (N)
103000
Grenstoerental (tr/min)
4900
Referentietoerental (tr/min)
Nein
EAN
Nein
Gewicht
2.1250
