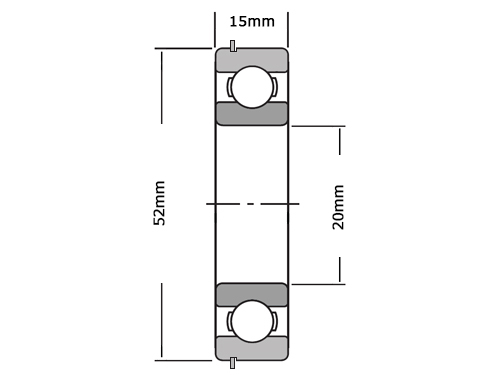

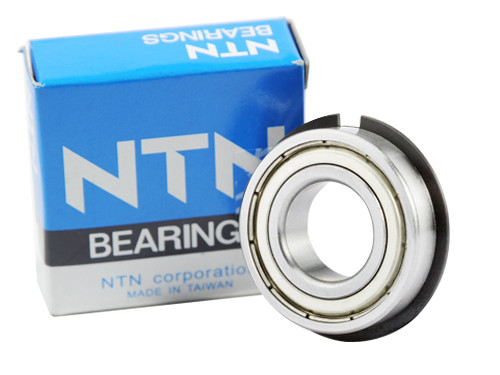

NTN Kogellager 6304 Z NR (20x52x15mm)
Product information
This product is made from Staal.
If you have any questions about the NTN Kogellager 6304 Z NR (20x52x15mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO469501
O.E.M. Nummer
Nein
kant, stalen, afdichting, NTN, Kogellager, 6304, NR, 20x52x15mm.
Brand
NTN
Typ
6304
Seal
Z (1 side metal shield)
Material
Staal
Materiaal Type
Nein
Buitenring
Groef in de buitenring met snapring
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C0 (Standard)
Asdiameter (mm)
20
Buitendiameter (mm)
52
Dikte (mm)
15
Vetsoort
Nein
Temperatuurbereik
-40º tot +120º C
Statisch Draaggetal (N)
7900
Dynamisch Draaggetal (N)
17600
Grenstoerental (tr/min)
14000
Referentietoerental (tr/min)
Nein
EAN
4547359574203
Gewicht
0.1500
