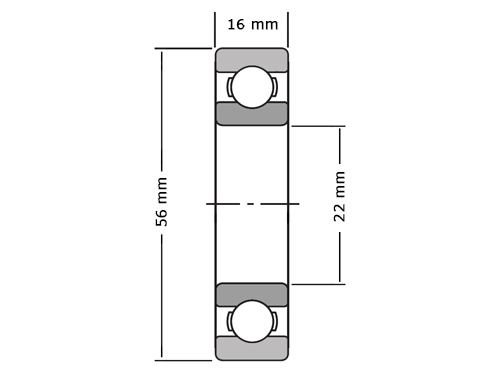

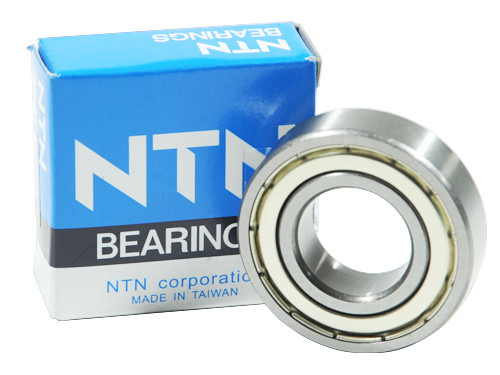

NTN Kogellager 63/22 ZZ C3 5K (22x56x16mm)
Product information
This product is made from Staal.
If you have any questions about the NTN Kogellager 63/22 ZZ C3 5K (22x56x16mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO103136
O.E.M. Nummer
Nein
ZZ, kanten, stalen, afdichting, NTN, Kogellager, 63, 22, C3, 5K, 22x56x16mm.
Brand
NTN
Typ
63/22
Seal
ZZ (2 sides metal shield)
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C3
Asdiameter (mm)
22
Buitendiameter (mm)
56
Dikte (mm)
16
Vetsoort
Nicht zutreffend
Temperatuurbereik
-25º tot +120º C
Statisch Draaggetal (N)
9250
Dynamisch Draaggetal (N)
20400
Grenstoerental (tr/min)
13000
Referentietoerental (tr/min)
Nein
EAN
4547359797558
Gewicht
0.1820
