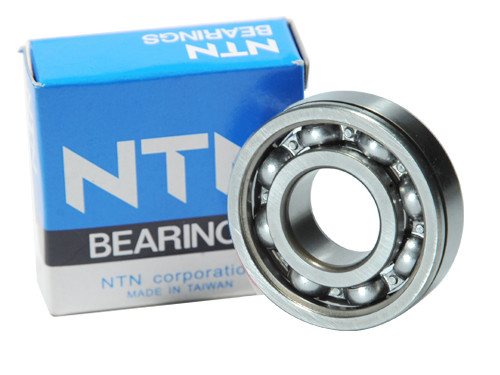

NTN Kogellager 6238 C3 (190x340x55mm)
Product information
This product is made from Staal.
If you have any questions about the NTN Kogellager 6238 C3 (190x340x55mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO738990
O.E.M. Nummer
Nein
NTN, Kogellager, 6238, C3, 190x340x55mm.
Brand
NTN
Typ
6238
Seal
No seal
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C3
Asdiameter (mm)
190
Buitendiameter (mm)
340
Dikte (mm)
55
Vetsoort
Nicht zutreffend
Temperatuurbereik
-40º tot +120º C
Statisch Draaggetal (N)
281000
Dynamisch Draaggetal (N)
282000
Grenstoerental (tr/min)
1800
Referentietoerental (tr/min)
Nein
EAN
4547359375251
Gewicht
19.2000
