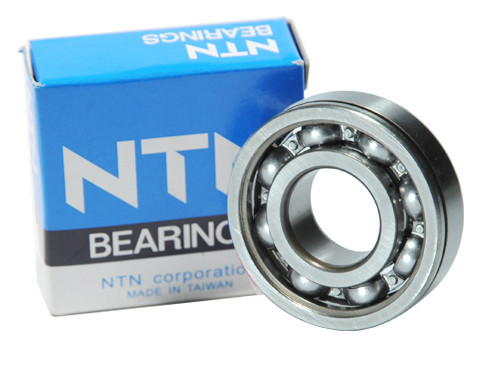

NTN Kogellager 6220 Z (100x180x34mm)
Product information
This product is made from Staal.
If you have any questions about the NTN Kogellager 6220 Z (100x180x34mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO142802
O.E.M. Nummer
Nein
NTN, Kogellager, 6220, 100x180x34mm.
Brand
NTN
Typ
6220
Seal
Z (1 side metal shield)
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C0 (Standard)
Asdiameter (mm)
100
Buitendiameter (mm)
180
Dikte (mm)
34
Vetsoort
Nicht zutreffend
Temperatuurbereik
-40º tot +120º C
Statisch Draaggetal (N)
93000
Dynamisch Draaggetal (N)
135000
Grenstoerental (tr/min)
3500
Referentietoerental (tr/min)
Nein
EAN
4547359373387
Gewicht
3.1750
