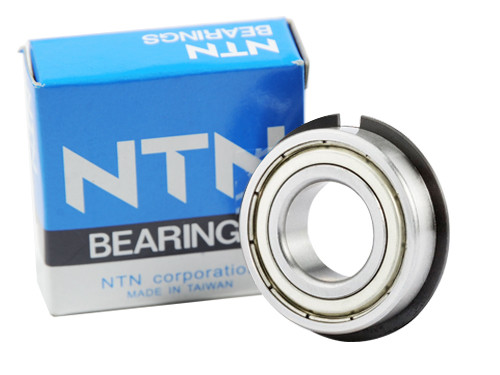

NTN Kogellager 6215 Z NR (70x130x25mm)
Product information
This product is made from Staal.
If you have any questions about the NTN Kogellager 6215 Z NR (70x130x25mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO558432
O.E.M. Nummer
Nein
kant, stalen, afdichting, NTN, Kogellager, 6215, NR, 70x130x25mm.
Brand
NTN
Typ
6215
Seal
Z (1 side metal shield)
Material
Staal
Materiaal Type
Nein
Buitenring
Groef in de buitenring met snapring
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C0 (Standard)
Asdiameter (mm)
70
Buitendiameter (mm)
130
Dikte (mm)
25
Vetsoort
Nein
Temperatuurbereik
-40º tot +120º C
Statisch Draaggetal (N)
49500
Dynamisch Draaggetal (N)
73500
Grenstoerental (tr/min)
4800
Referentietoerental (tr/min)
Nein
EAN
4547359371192
Gewicht
1.2250
