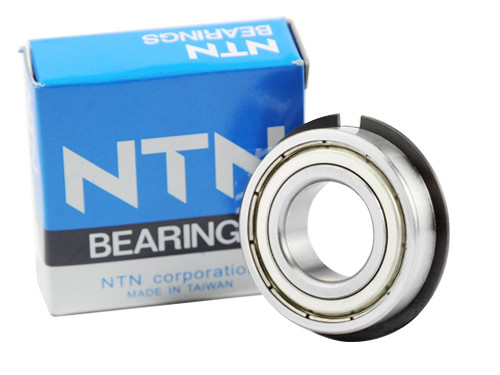

NTN Kogellager 6204 ZZ NR 2AS (20x47x14mm)
Product information
This product is made from Staal.
If you have any questions about the NTN Kogellager 6204 ZZ NR 2AS (20x47x14mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
This product is currently out of stock.
- Easy return
Technical data
Artikelposition
BO920511
O.E.M. Nummer
Nein
ZZ, kanten, stalen, afdichting, NTN, Kogellager, 6204, NR, 2AS, 20x47x14mm.
Brand
NTN
Typ
6204
Seal
ZZ (2 sides metal shield)
Material
Staal
Materiaal Type
Nein
Buitenring
Groef in de buitenring met snapring
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C0 (Standard)
Asdiameter (mm)
20
Buitendiameter (mm)
47
Dikte (mm)
14
Vetsoort
Nein
Temperatuurbereik
-25º tot +120º C
Statisch Draaggetal (N)
6650
Dynamisch Draaggetal (N)
14200
Grenstoerental (tr/min)
16000
Referentietoerental (tr/min)
Nein
EAN
4547359010749
Gewicht
0.1100
