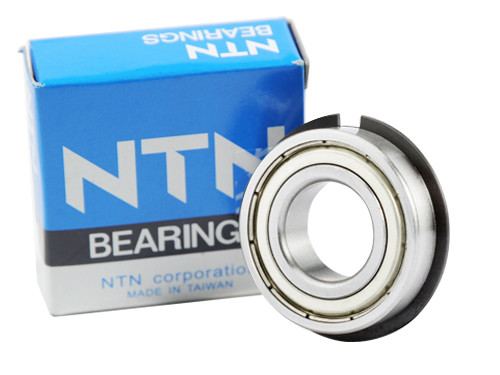

NTN Kogellager 6203 ZZ NR 5K (17x40x12mm)
Product information
This product is made from Staal.
If you have any questions about the NTN Kogellager 6203 ZZ NR 5K (17x40x12mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO759989
O.E.M. Nummer
Nein
ZZ, kanten, stalen, afdichting, NTN, Kogellager, 6203, NR, 5K, 17x40x12mm.
Brand
NTN
Typ
6203
Seal
ZZ (2 sides metal shield)
Material
Staal
Materiaal Type
Nein
Buitenring
Groef in de buitenring met snapring
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C3
Asdiameter (mm)
17
Buitendiameter (mm)
40
Dikte (mm)
12
Vetsoort
Nein
Temperatuurbereik
-40º tot +150º C
Statisch Draaggetal (N)
4600
Dynamisch Draaggetal (N)
10600
Grenstoerental (tr/min)
18000
Referentietoerental (tr/min)
Nein
EAN
4547359010725
Gewicht
0.0700
