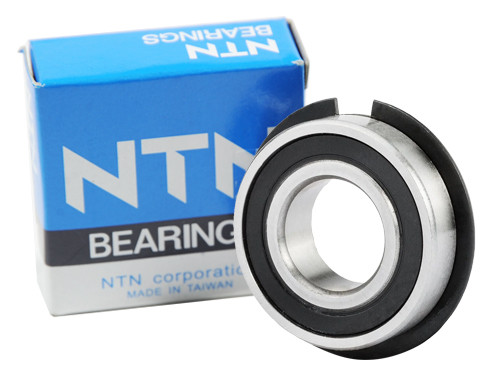

NTN Kogellager 6004 LLU NR 5K (20x42x12mm)
Product information
This product is made from Staal.
If you have any questions about the NTN Kogellager 6004 LLU NR 5K (20x42x12mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO840641
O.E.M. Nummer
Nein
2RS, kanten, kunststof, afdichting, NTN, Kogellager, 6004, LLU, NR, 5K, 20x42x12mm.
Brand
NTN
Typ
6004
Seal
2RS (2 sides rubber seal)
Material
Staal
Materiaal Type
Nein
Buitenring
Groef in de buitenring met snapring
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C0 (Standard)
Asdiameter (mm)
20
Buitendiameter (mm)
42
Dikte (mm)
12
Vetsoort
Nein
Temperatuurbereik
-40º tot +120º C
Statisch Draaggetal (N)
5050
Dynamisch Draaggetal (N)
10400
Grenstoerental (tr/min)
11000
Referentietoerental (tr/min)
Nein
EAN
4547359545173
Gewicht
0.0750
