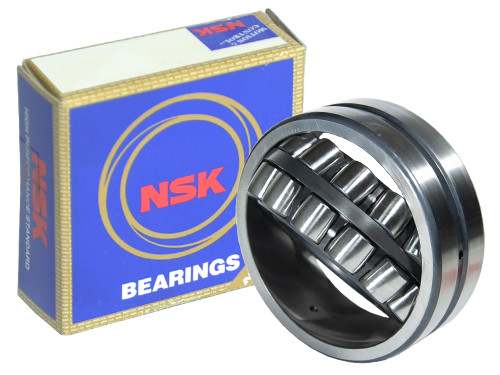

NSK Tonlager Zelfinstellend 24034 Cilindrisch CE4 (170x260x90mm)
Product information
If you have any questions about the NSK Tonlager Zelfinstellend 24034 Cilindrisch CE4 (170x260x90mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO858483
NSK, Tonlager, Zelfinstellend, 24034, Cilindrisch, CE4, 170x260x90mm.
O.E.M. Nummer
Nein
Brand
NSK
Typ
Nein
Seal
No seal
Tolerance Class
C0 (Standard)

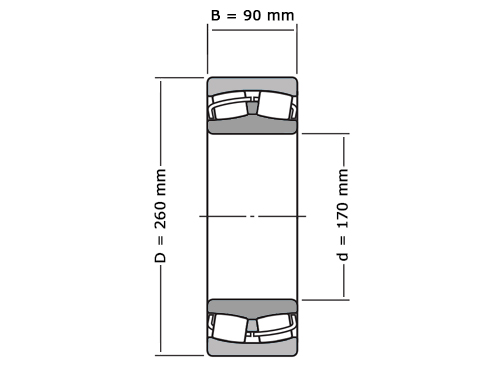

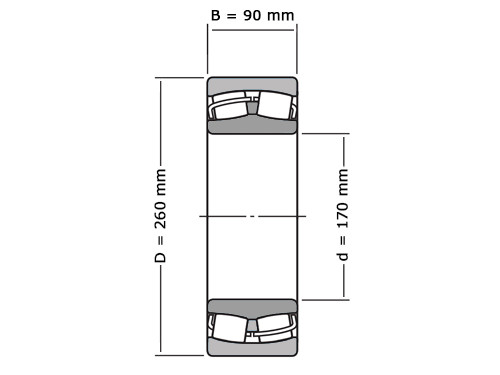

Asdiameter - d (mm)
170
Buitendiameter - D (mm)
260
Dikte - B (mm)
90
r min (mm)
2.1
Vetsoort
Nicht zutreffend
Kooi
Nicht zutreffend
Boring
Nicht zutreffend
Statisch Draaggetal (N)
1520000
Dynamisch Draaggetal (N)
1030000
Grenstoerental (tr/min)
1000
Referentietoerental (tr/min)
Nicht zutreffend
Gewicht
16.5000
EAN
Nein
