NSK Kogellager Zelfinstellend 2309 Cilindrisch 2RS TNG (45x100x36mm)
Product information
If you have any questions about the NSK Kogellager Zelfinstellend 2309 Cilindrisch 2RS TNG (45x100x36mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO858108
NSK, Kogellager, Zelfinstellend, 2309, Cilindrisch, 2RS, TNG, 45x100x36mm.
O.E.M. Nummer
Nein
Brand
NSK
Typ
2309
Seal
2RS (2 sides rubber seal)
Tolerance Class
C0 (Standard)

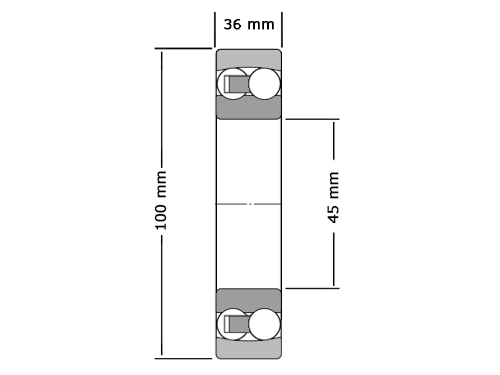

Asdiameter - d (mm)
45
Buitendiameter - D (mm)
100
Dikte - B (mm)
36
r min (mm)
1.5
Vetsoort
Nicht zutreffend
Kooi
Nicht zutreffend
Boring
Nicht zutreffend
Statisch Draaggetal (N)
16700
Dynamisch Draaggetal (N)
60500
Grenstoerental (tr/min)
Nein
Referentietoerental (tr/min)
Nein
Gewicht
1.2900
EAN
Nein
