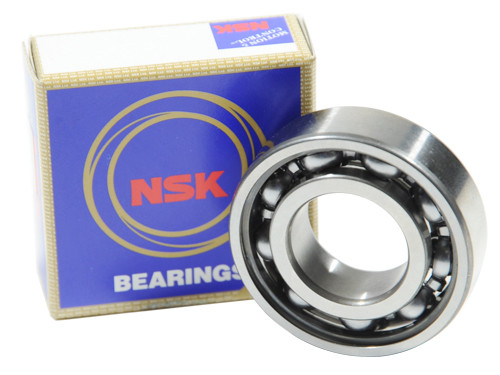

NSK Kogellager 6309 C4 (45x100x25mm)
Product information
This product is made from Staal.
If you have any questions about the NSK Kogellager 6309 C4 (45x100x25mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO328997
O.E.M. Nummer
Nein
Zonder, afdichting, NSK, Kogellager, 6309, C4, 45x100x25mm.
Brand
NSK
Typ
6309
Seal
No seal
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C4
Asdiameter (mm)
45
Buitendiameter (mm)
100
Dikte (mm)
25
Vetsoort
Nicht zutreffend
Temperatuurbereik
Nicht zutreffend
Statisch Draaggetal (N)
32000
Dynamisch Draaggetal (N)
58500
Grenstoerental (tr/min)
7500
Referentietoerental (tr/min)
Nein
EAN
Nein
Gewicht
0.8310
