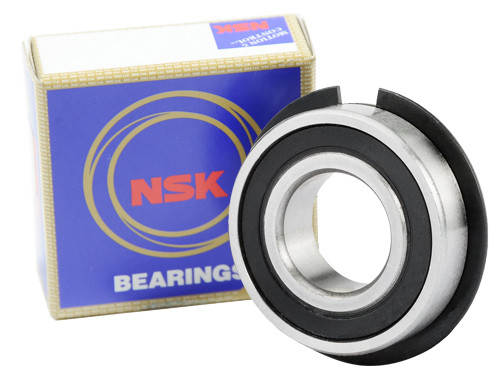

NSK Kogellager 6308 DDU NR C3 (40x90x23mm)
Product information
This product is made from Staal.
If you have any questions about the NSK Kogellager 6308 DDU NR C3 (40x90x23mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO270026
O.E.M. Nummer
Nein
2RS, kanten, kunststof, afdichting, NSK, Kogellager, 6308, DDU, NR, C3, 40x90x23mm.
Brand
NSK
Typ
6308
Seal
2RS (2 sides rubber seal)
Material
Staal
Materiaal Type
Nein
Buitenring
Groef in de buitenring met snapring
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C3
Asdiameter (mm)
40
Buitendiameter (mm)
90
Dikte (mm)
23
Vetsoort
Nein
Temperatuurbereik
Nein
Statisch Draaggetal (N)
24000
Dynamisch Draaggetal (N)
45000
Grenstoerental (tr/min)
5300
Referentietoerental (tr/min)
Nein
EAN
Nein
Gewicht
0.6600
