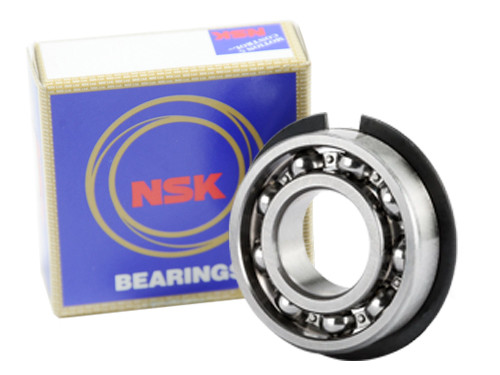

NSK Kogellager 63/22 NR C3 (22x56x16mm)
Product information
This product is made from Staal.
If you have any questions about the NSK Kogellager 63/22 NR C3 (22x56x16mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO421779
O.E.M. Nummer
Nein
NSK, Kogellager, 63, 22, NR, C3, 22x56x16mm.
Brand
NSK
Typ
63/22
Seal
No seal
Material
Staal
Materiaal Type
Nein
Buitenring
Groef in de buitenring met snapring
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C3
Asdiameter (mm)
22
Buitendiameter (mm)
56
Dikte (mm)
16
Vetsoort
Nein
Temperatuurbereik
Nein
Statisch Draaggetal (N)
9250
Dynamisch Draaggetal (N)
20200
Grenstoerental (tr/min)
13000
Referentietoerental (tr/min)
Nein
EAN
Nein
Gewicht
0.1760
