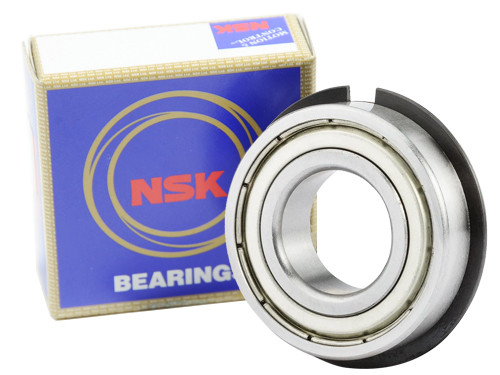

NSK Kogellager 6204 Z NR (20x47x14mm)
Product information
This product is made from Staal.
If you have any questions about the NSK Kogellager 6204 Z NR (20x47x14mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO333265
O.E.M. Nummer
Nein
kant, stalen, afdichting, NSK, Kogellager, 6204, NR, 20x47x14mm.
Brand
NSK
Typ
6204
Seal
Z (1 side metal shield)
Material
Staal
Materiaal Type
Nein
Buitenring
Groef in de buitenring met snapring
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C0 (Standard)
Asdiameter (mm)
20
Buitendiameter (mm)
47
Dikte (mm)
14
Vetsoort
Nein
Temperatuurbereik
Nein
Statisch Draaggetal (N)
6600
Dynamisch Draaggetal (N)
14100
Grenstoerental (tr/min)
17000
Referentietoerental (tr/min)
Nein
EAN
Nein
Gewicht
0.1010
