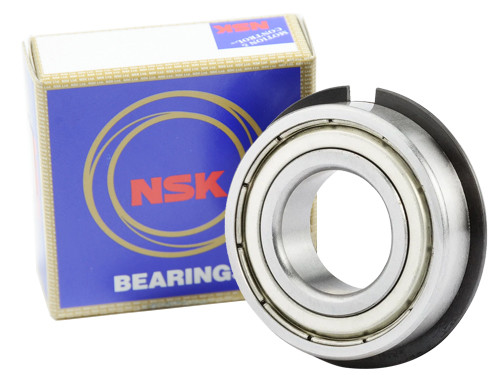

NSK Kogellager 6203 ZZ NR (17x40x12mm)
Product information
This product is made from Staal.
If you have any questions about the NSK Kogellager 6203 ZZ NR (17x40x12mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO535473
O.E.M. Nummer
Nein
ZZ, kanten, stalen, afdichting, NSK, Kogellager, 6203, NR, 17x40x12mm.
Brand
NSK
Typ
6203
Seal
ZZ (2 sides metal shield)
Material
Staal
Materiaal Type
Nein
Buitenring
Groef in de buitenring met snapring
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C0 (Standard)
Asdiameter (mm)
17
Buitendiameter (mm)
40
Dikte (mm)
12
Vetsoort
Nein
Temperatuurbereik
Nein
Statisch Draaggetal (N)
4800
Dynamisch Draaggetal (N)
10500
Grenstoerental (tr/min)
20000
Referentietoerental (tr/min)
Nein
EAN
029176034589
Gewicht
0.0670
