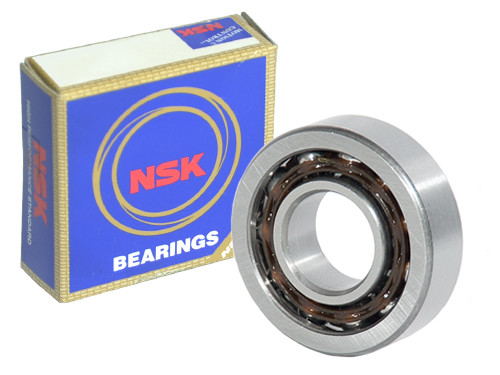

NSK Hoekcontactlager Tweerijig 7909 C TR DUM P3 (45x68x24mm)
Product information
If you have any questions about the NSK Hoekcontactlager Tweerijig 7909 C TR DUM P3 (45x68x24mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO706351
NSK, Hoekcontactlager, Tweerijig, 7909, TR, DUM, P3, 45x68x24mm.
O.E.M. Nummer
Nein
Brand
NSK
Typ
7909
Seal
Nein
Buitenring
Nein
Kooi
Nein

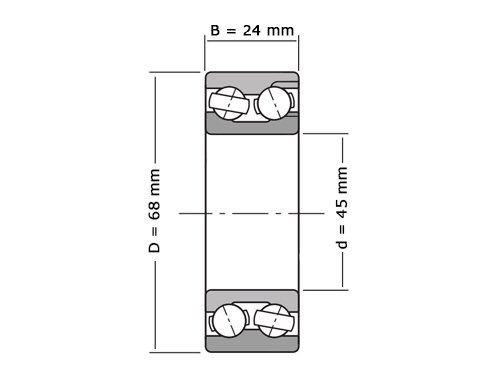

Asdiameter - d (mm)
45
Buitendiameter - D (mm)
68
Dikte - B (mm)
24
r min (mm)
0.6
Statisch Draaggetal (N)
13400
Dynamisch Draaggetal (N)
20400
Grenstoerental (tr/min)
Nein
Referentietoerental (tr/min)
Nein
Temperatuurbereik
-30º tot +100º C
Vetsoort
Nein
Tolerance Class
C0 (Standard)
HS Code
Nicht zutreffend
Gewicht
0.2560
EAN
0029176618529
