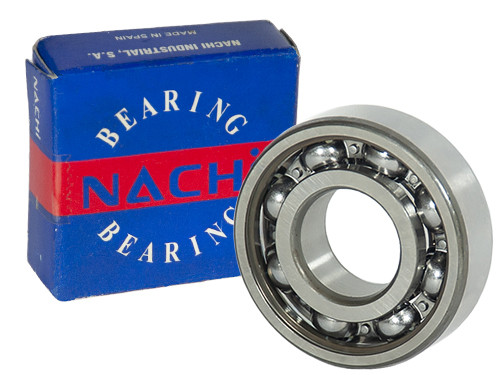

Nachi Kogellager 6209 Z E CM (45x85x19mm)
Product information
This product is made from Staal.
If you have any questions about the Nachi Kogellager 6209 Z E CM (45x85x19mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO280423
O.E.M. Nummer
Nein
Nachi, Kogellager, 6209, ZE, CM, 45x85x19mm.
Brand
Nachi
Typ
6209
Seal
Z (1 side metal shield)
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Nicht zutreffend
Boring
Nicht zutreffend
Details
Nein
Tolerance Class
C0 (Standard)
Asdiameter (mm)
45
Buitendiameter (mm)
85
Dikte (mm)
19
Vetsoort
Nicht zutreffend
Temperatuurbereik
-25º tot +120º C
Statisch Draaggetal (N)
20500
Dynamisch Draaggetal (N)
32500
Grenstoerental (tr/min)
7800
Referentietoerental (tr/min)
Nein
EAN
4991893577433
Gewicht
0.4100
