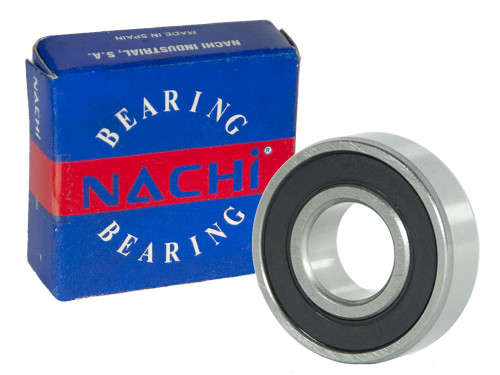

Nachi Kogellager 6316 2NSL C3 (80x170x39mm)
Product information
If you have any questions about the Nachi Kogellager 6316 2NSL C3 (80x170x39mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO452043
O.E.M. Nummer
Nein
Nachi, Kogellager, 6316, 2NSL, C3, 80x170x39mm.
Brand
Nachi
Typ
6316
Seal
2RS (2 sides rubber seal)
Material
Nein
Materiaal Type
Nein
Buitenring
Zonder flens/groef
Kooi
Nein
Boring
Nein
Details
Nein
Tolerance Class
C3
Asdiameter (mm)
80
Buitendiameter (mm)
170
Dikte (mm)
39
Vetsoort
Nein
Temperatuurbereik
-25º tot +120º C
Statisch Draaggetal (N)
86500
Dynamisch Draaggetal (N)
123000
Grenstoerental (tr/min)
2800
Referentietoerental (tr/min)
Nein
EAN
Nein
Gewicht
3.5100
