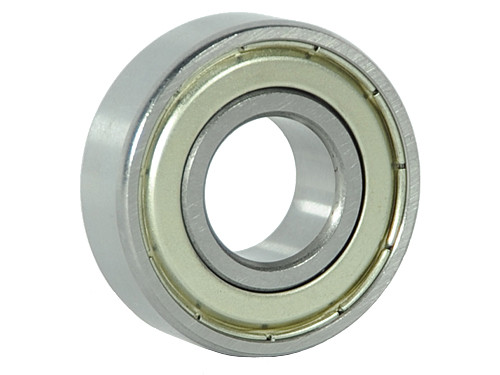

IBB Kogellager 6324 ZZ C3 (120x260x55mm)
Product information
This product is made from Staal.
If you have any questions about the IBB Kogellager 6324 ZZ C3 (120x260x55mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO142983
O.E.M. Nummer
Nein
IBB, Kogellager, 6324, ZZ, C3, 120x260x55mm.
Brand
IBB
Typ
6324
Seal
ZZ (2 sides metal shield)
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Nicht zutreffend
Boring
Nicht zutreffend
Details
Nein
Tolerance Class
C3
Asdiameter (mm)
120
Buitendiameter (mm)
260
Dikte (mm)
55
Vetsoort
Nicht zutreffend
Temperatuurbereik
Nicht zutreffend
Statisch Draaggetal (N)
186000
Dynamisch Draaggetal (N)
208000
Grenstoerental (tr/min)
2200
Referentietoerental (tr/min)
5600
EAN
Nein
Gewicht
12.2080
