IBB Kogellager 6201 2RS C3 RVS (12x32x10mm)
Product information
This product is made from RVS.
If you have any questions about the IBB Kogellager 6201 2RS C3 RVS (12x32x10mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO270108
O.E.M. Nummer
Nein
2RS, kanten, kunststof, afdichting, IBB, Kogellager, 6201, C3, RVS, 12x32x10mm.
Brand
IBB
Typ
6201
Seal
2RS (2 sides rubber seal)
Material
RVS
Materiaal Type
Nein
Buitenring
Zonder flens/groef
Kooi
Nicht zutreffend
Boring
Nicht zutreffend
Details
Nein
Tolerance Class
C3

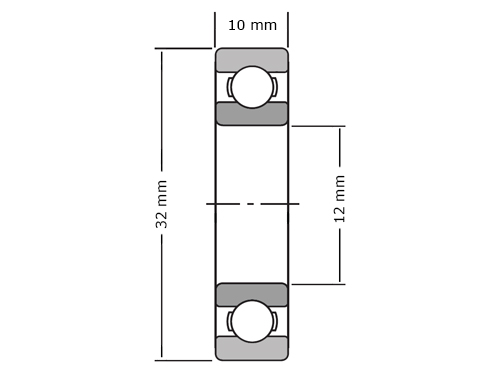

Asdiameter (mm)
12
Buitendiameter (mm)
32
Dikte (mm)
10
Vetsoort
Nicht zutreffend
Temperatuurbereik
Nicht zutreffend
Statisch Draaggetal (N)
3000
Dynamisch Draaggetal (N)
5720
Grenstoerental (tr/min)
22000
Referentietoerental (tr/min)
53000
EAN
Nein
Gewicht
0.0370
