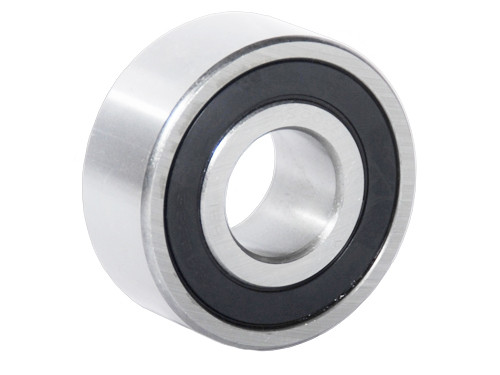

IBB Hoekcontactlager Tweerijig 5308/3308 B 2RS RVS (40x90x36.5mm)
Product information
If you have any questions about the IBB Hoekcontactlager Tweerijig 5308/3308 B 2RS RVS (40x90x36.5mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO625224
IBB, Hoekcontactlager, Tweerijig, 5308, 3308, 2RS, RVS, 40x90x36.5mm.
O.E.M. Nummer
Nein
Brand
IBB
Typ
Nein
Seal
2RS (2 sides rubber seal)
Buitenring
Nicht zutreffend
Kooi
Nicht zutreffend
Asdiameter - d (mm)
40
Buitendiameter - D (mm)
90
Dikte - B (mm)
36.5
r min (mm)
1.5
Statisch Draaggetal (N)
30380
Dynamisch Draaggetal (N)
43330
Grenstoerental (tr/min)
Nein
Referentietoerental (tr/min)
Nein
Temperatuurbereik
Nicht zutreffend
Vetsoort
Nicht zutreffend
Tolerance Class
C0 (Standard)
Gewicht
1.0700
EAN
Nein
