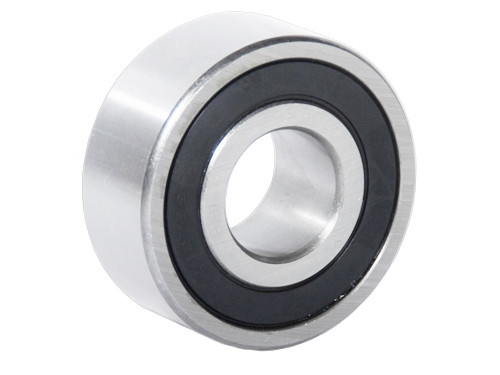

IBB Hoekcontactlager Tweerijig 5303/3303 B 2RS (17x47x22.2mm)
Product information
If you have any questions about the IBB Hoekcontactlager Tweerijig 5303/3303 B 2RS (17x47x22.2mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO401043
IBB, Hoekcontactlager, Tweerijig, 5303, 3303, 2RS, 17x47x22.2mm.
O.E.M. Nummer
Nein
Brand
IBB
Typ
5303/3303
Seal
2RS (2 sides rubber seal)
Buitenring
Nicht zutreffend
Kooi
Nicht zutreffend

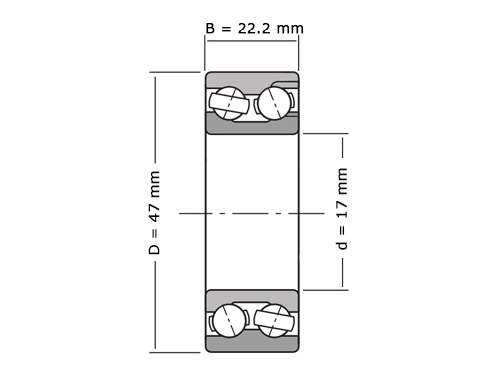

Asdiameter - d (mm)
17
Buitendiameter - D (mm)
47
Dikte - B (mm)
22.2
r min (mm)
1
Statisch Draaggetal (N)
11900
Dynamisch Draaggetal (N)
20900
Grenstoerental (tr/min)
Nein
Referentietoerental (tr/min)
Nein
Temperatuurbereik
Nicht zutreffend
Vetsoort
Nicht zutreffend
Tolerance Class
C0 (Standard)
Gewicht
0.1760
EAN
Nein
