IBB Angular Contact Ball Bearing Double Row 5204/3204 2RS (20x47x20,6mm)
Product information
If you have any questions about the IBB Angular Contact Ball Bearing Double Row 5204/3204 2RS (20x47x20,6mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO743452
IBB, Angular, Contact, Ball, Bearing, Double, Row, 5204, 3204, 2RS, 20x47x20, 6mm.
O.E.M. Nummer
Nein
Brand
IBB
Typ
5204/3204
Seal
2RS (2 sides rubber seal)
Buitenring
Nicht zutreffend
Kooi
Nicht zutreffend

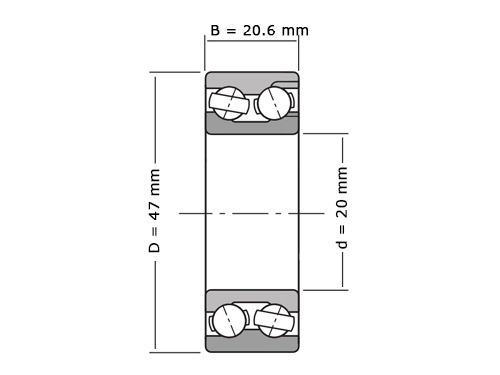

Asdiameter - d (mm)
20
Buitendiameter - D (mm)
47
Dikte - B (mm)
20.6
r min (mm)
1
Statisch Draaggetal (N)
12000
Dynamisch Draaggetal (N)
19300
Grenstoerental (tr/min)
Nein
Referentietoerental (tr/min)
Nein
Temperatuurbereik
Nicht zutreffend
Vetsoort
Nicht zutreffend
Tolerance Class
Nein
Gewicht
0.1200
EAN
Nein
