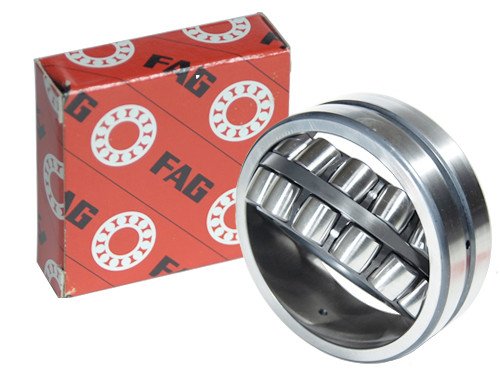

FAG Tonlager Zelfinstellend 23224 Cilindrisch E1 TVPB (120x215x76mm)
Product information
If you have any questions about the FAG Tonlager Zelfinstellend 23224 Cilindrisch E1 TVPB (120x215x76mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO675752
FAG, Tonlager, Zelfinstellend, 23224, Cilindrisch, E1, TVP, 120x215x76mm.
O.E.M. Nummer
Nein
Brand
Fag
Typ
23224
Seal
No seal
Tolerance Class
C0 (Standard)
Asdiameter - d (mm)
120
Buitendiameter - D (mm)
215
Dikte - B (mm)
76
r min (mm)
2.1
Vetsoort
Nicht zutreffend
Kooi
Nicht zutreffend
Boring
Nicht zutreffend
Statisch Draaggetal (N)
1020000
Dynamisch Draaggetal (N)
820000
Grenstoerental (tr/min)
3000
Referentietoerental (tr/min)
1910
Gewicht
11.3750
EAN
4026677829795
