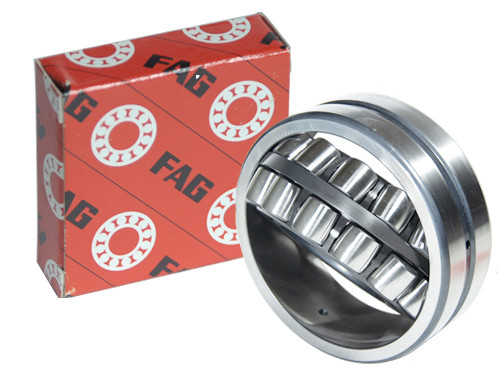

FAG Tonlager Zelfinstellend 23038 Cilindrisch E1A XL M C4 (190x290x75mm)
Product information
If you have any questions about the FAG Tonlager Zelfinstellend 23038 Cilindrisch E1A XL M C4 (190x290x75mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO206356
FAG, Tonlager, Zelfinstellend, 23038, Cilindrisch, E1A, XL, C4, 190x290x75mm.
O.E.M. Nummer
Nein
Brand
Fag
Typ
Nein
Seal
No seal
Tolerance Class
C0 (Standard)

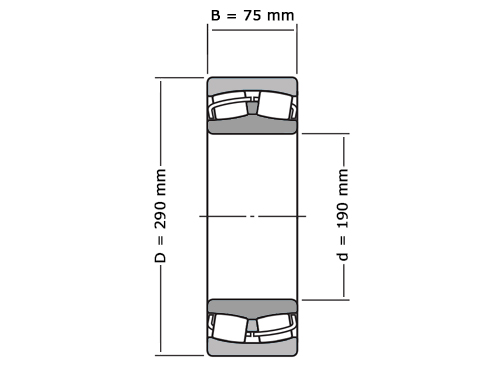

Asdiameter - d (mm)
190
Buitendiameter - D (mm)
290
Dikte - B (mm)
75
r min (mm)
2.1
Vetsoort
Nicht zutreffend
Kooi
Nicht zutreffend
Boring
Nicht zutreffend
Statisch Draaggetal (N)
1550000
Dynamisch Draaggetal (N)
1080000
Grenstoerental (tr/min)
2490
Referentietoerental (tr/min)
1660
Gewicht
17.5000
EAN
4026677871725
