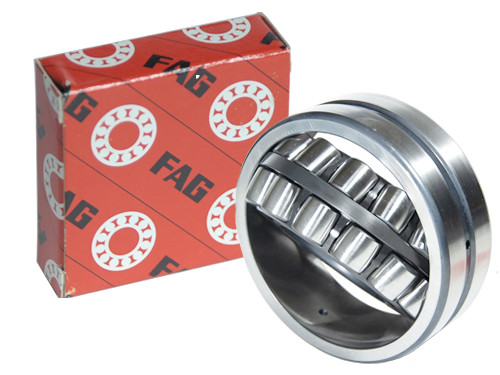

FAG Tonlager Zelfinstellend 22224 Conisch E1A K M C3 (120x215x58mm)
Product information
If you have any questions about the FAG Tonlager Zelfinstellend 22224 Conisch E1A K M C3 (120x215x58mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
This product is currently out of stock.
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO992102
FAG, Tonlager, Zelfinstellend, 22224, Conisch, E1A, C3, 120x215x58mm.
O.E.M. Nummer
Nein
Brand
Fag
Typ
22224
Seal
No seal
Tolerance Class
C3

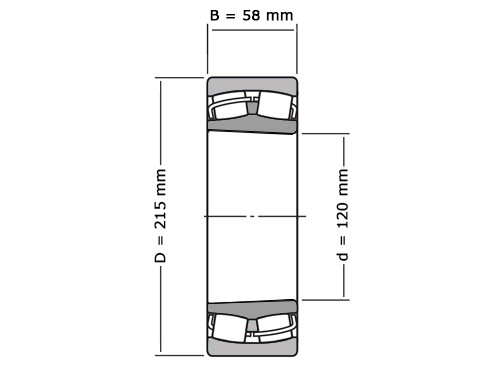

Asdiameter - d (mm)
120
Buitendiameter - D (mm)
215
Dikte - B (mm)
58
r min (mm)
2.1
Vetsoort
Nicht zutreffend
Kooi
Nicht zutreffend
Boring
Nicht zutreffend
Statisch Draaggetal (N)
740000
Dynamisch Draaggetal (N)
640000
Grenstoerental (tr/min)
3650
Referentietoerental (tr/min)
2700
Gewicht
8.5500
EAN
4026677850669
