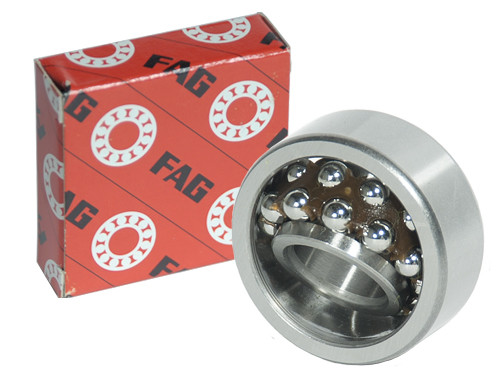

FAG Kogellager Zelfinstellend 2309 Conisch K 2RS TVH C3 (45x100x36mm)
Product information
If you have any questions about the FAG Kogellager Zelfinstellend 2309 Conisch K 2RS TVH C3 (45x100x36mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO310873
FAG, Kogellager, Zelfinstellend, 2309, Conisch, 2RS, TVH, C3, 45x100x36mm.
O.E.M. Nummer
Nein
Brand
Fag
Typ
2309
Seal
2RS (2 sides rubber seal)
Tolerance Class
C3

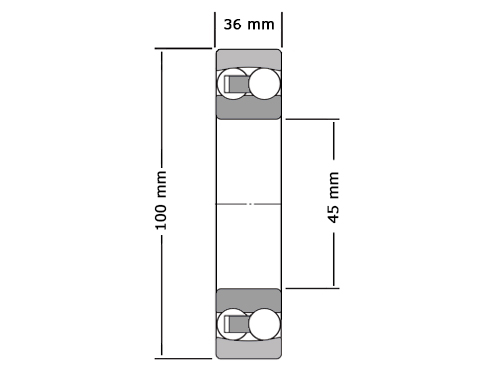

Asdiameter - d (mm)
45
Buitendiameter - D (mm)
100
Dikte - B (mm)
36
r min (mm)
1.5
Vetsoort
Nicht zutreffend
Kooi
Nicht zutreffend
Boring
Nicht zutreffend
Statisch Draaggetal (N)
12700
Dynamisch Draaggetal (N)
38500
Grenstoerental (tr/min)
4550
Referentietoerental (tr/min)
Nicht zutreffend
Gewicht
1.2000
EAN
4012801484701
