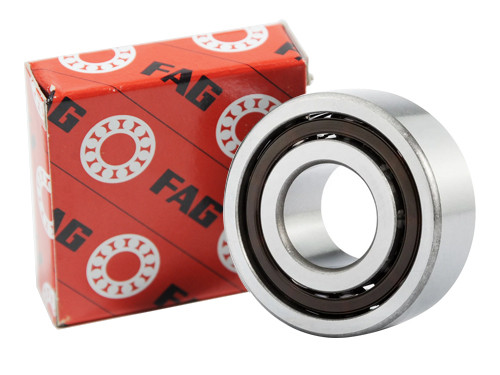

FAG Kogellager Tweerijig 4314 B TVH (70x150x51mm)
Product information
This product is made from Staal.
If you have any questions about the FAG Kogellager Tweerijig 4314 B TVH (70x150x51mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO446127
O.E.M. Nummer
Nein
FAG, Kogellager, Tweerijig, 4314, TVH, 70x150x51mm.
Brand
Fag
Typ
4314
Seal
No seal
Material
Staal
Materiaal Type
Nein
Buitenring
Zonder flens/groef
Kooi
Polyamide
Boring
Cilindrisch
Details
Nein
Tolerance Class
C0 (Standard)
Asdiameter (mm)
70
Buitendiameter (mm)
150
Dikte (mm)
51
Vetsoort
Nicht zutreffend
Temperatuurbereik
-20º tot +120º C
Statisch Draaggetal (N)
131000
Dynamisch Draaggetal (N)
156000
Grenstoerental (tr/min)
3550
Referentietoerental (tr/min)
4200
EAN
4012801512244
Gewicht
3.9900
