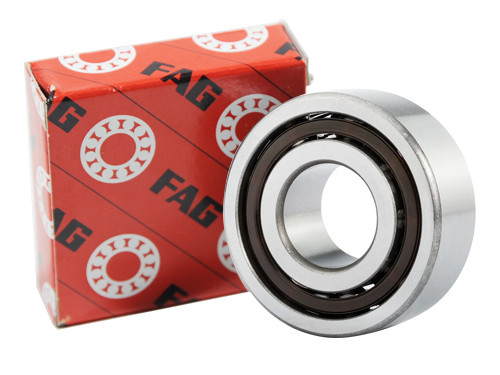

FAG Kogellager Tweerijig 4312 B TVH (60x130x46mm)
Product information
This product is made from Staal.
If you have any questions about the FAG Kogellager Tweerijig 4312 B TVH (60x130x46mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO309316
O.E.M. Nummer
Nein
FAG, Kogellager, Tweerijig, 4312, TVH, 60x130x46mm.
Brand
Fag
Typ
4312
Seal
No seal
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Polyamide
Boring
Cilindrisch
Details
Nein
Tolerance Class
C0 (Standard)
Asdiameter (mm)
60
Buitendiameter (mm)
130
Dikte (mm)
46
Vetsoort
Nicht zutreffend
Temperatuurbereik
-20º tot +120º C
Statisch Draaggetal (N)
106000
Dynamisch Draaggetal (N)
128000
Grenstoerental (tr/min)
3950
Referentietoerental (tr/min)
4350
EAN
4012801197229
Gewicht
2.5100
