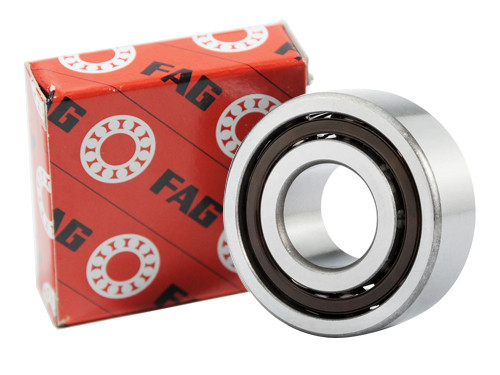

FAG Kogellager Tweerijig 4204 BB TVH (20x47x18mm)
Product information
This product is made from Staal.
If you have any questions about the FAG Kogellager Tweerijig 4204 BB TVH (20x47x18mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO544090
O.E.M. Nummer
Nein
FAG, Kogellager, Tweerijig, 4204, BB, TVH, 20x47x18mm.
Brand
Fag
Typ
4204
Seal
No seal
Material
Staal
Materiaal Type
Nein
Buitenring
Zonder flens/groef
Kooi
Polyamide
Boring
Cilindrisch
Details
Nein
Tolerance Class
C0 (Standard)
Asdiameter (mm)
20
Buitendiameter (mm)
47
Dikte (mm)
18
Vetsoort
Nicht zutreffend
Temperatuurbereik
-20º tot +120º C
Statisch Draaggetal (N)
13200
Dynamisch Draaggetal (N)
20900
Grenstoerental (tr/min)
12500
Referentietoerental (tr/min)
13300
EAN
4026677952417
Gewicht
0.1550
