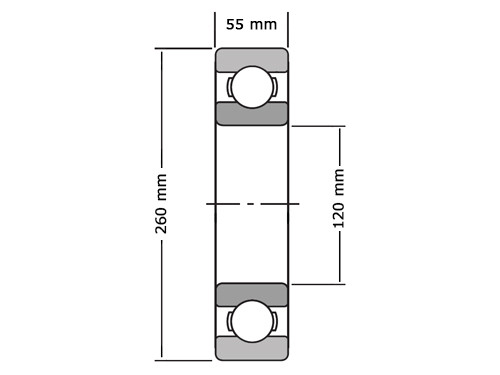

FAG Kogellager 6324 C4 (120x260x55mm)
Product information
This product is made from Staal.
If you have any questions about the FAG Kogellager 6324 C4 (120x260x55mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO332135
O.E.M. Nummer
Nein
FAG, Kogellager, 6324, C4, 120x260x55mm.
Brand
Fag
Typ
6324
Seal
No seal
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C4
Asdiameter (mm)
120
Buitendiameter (mm)
260
Dikte (mm)
55
Vetsoort
Nicht zutreffend
Temperatuurbereik
-30º tot +200º C
Statisch Draaggetal (N)
195000
Dynamisch Draaggetal (N)
22500
Grenstoerental (tr/min)
3500
Referentietoerental (tr/min)
3800
EAN
4012801206044
Gewicht
12.7000
