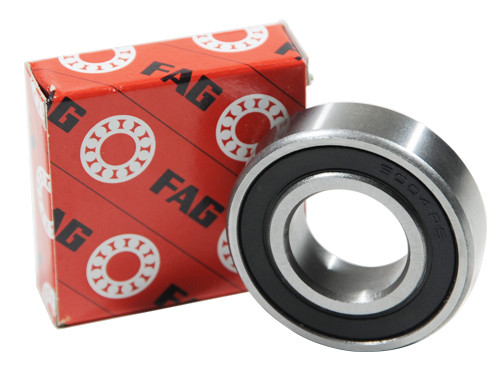

FAG Kogellager 6316 RSR C3 (80x170x39mm)
Product information
This product is made from Staal.
If you have any questions about the FAG Kogellager 6316 RSR C3 (80x170x39mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO784090
O.E.M. Nummer
Nein
RS, kant, kunststof, afdichting, FAG, Kogellager, 6316, RSR, C3, 80x170x39mm.
Brand
Fag
Typ
6316
Seal
RS (1 side rubber seal
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C3
Asdiameter (mm)
80
Buitendiameter (mm)
170
Dikte (mm)
39
Vetsoort
Nicht zutreffend
Temperatuurbereik
-30º tot +100º C
Statisch Draaggetal (N)
87000
Dynamisch Draaggetal (N)
131000
Grenstoerental (tr/min)
2470
Referentietoerental (tr/min)
5500
EAN
4012801280921
Gewicht
3.7250
