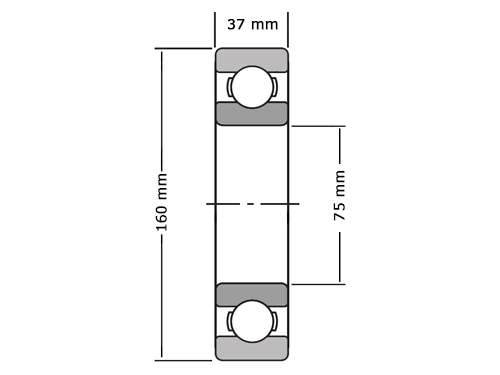

FAG Kogellager 6315 C3 J20AA (75x160x37mm)
Product information
This product is made from Staal.
If you have any questions about the FAG Kogellager 6315 C3 J20AA (75x160x37mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
This product is currently out of stock.
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO274975
O.E.M. Nummer
Nein
Zonder, afdichting, FAG, Kogellager, 6315, C3, J20, AA, 75x160x37mm.
Brand
Fag
Typ
6315
Seal
No seal
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C3
Asdiameter (mm)
75
Buitendiameter (mm)
160
Dikte (mm)
37
Vetsoort
Nicht zutreffend
Temperatuurbereik
-30º tot +150º C
Statisch Draaggetal (N)
77000
Dynamisch Draaggetal (N)
123000
Grenstoerental (tr/min)
6300
Referentietoerental (tr/min)
5800
EAN
4012802485462
Gewicht
3.0300
