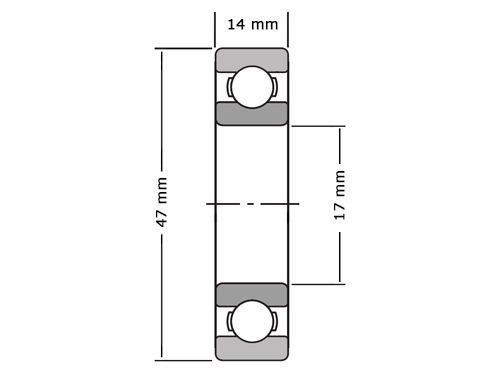

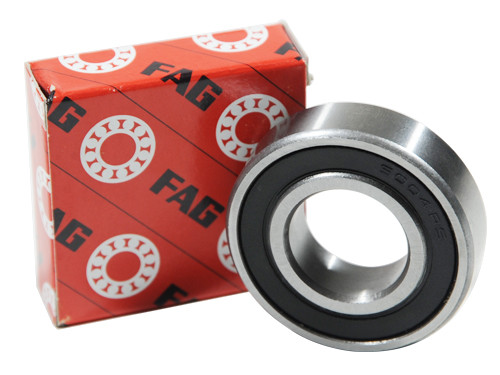

FAG Kogellager 6303 2RSR C3 (17x47x14mm)
Product information
This product is made from Staal.
If you have any questions about the FAG Kogellager 6303 2RSR C3 (17x47x14mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO156086
O.E.M. Nummer
Nein
2RS, kanten, kunststof, afdichting, FAG, Kogellager, 6303, 2RSR, C3, 17x47x14mm.
Brand
Fag
Typ
6303
Seal
2RS (2 sides rubber seal)
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C3
Asdiameter (mm)
17
Buitendiameter (mm)
47
Dikte (mm)
14
Vetsoort
Nicht zutreffend
Temperatuurbereik
-20º tot +100º C
Statisch Draaggetal (N)
6500
Dynamisch Draaggetal (N)
14400
Grenstoerental (tr/min)
10200
Referentietoerental (tr/min)
15900
EAN
4012801059503
Gewicht
0.1160
