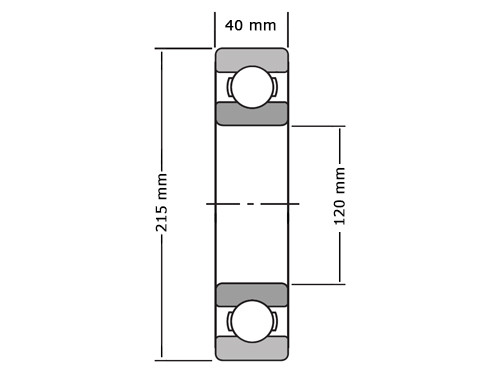

FAG Kogellager 6224 (120x215x40mm)
Product information
This product is made from Staal.
If you have any questions about the FAG Kogellager 6224 (120x215x40mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO456031
O.E.M. Nummer
Nein
Zonder, afdichting, FAG, Kogellager, 6224, 120x215x40mm.
Brand
Fag
Typ
6224
Seal
No seal
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C0 (Standard)
Asdiameter (mm)
120
Buitendiameter (mm)
215
Dikte (mm)
40
Vetsoort
Nicht zutreffend
Temperatuurbereik
-30º tot +150º C
Statisch Draaggetal (N)
123000
Dynamisch Draaggetal (N)
154000
Grenstoerental (tr/min)
4200
Referentietoerental (tr/min)
4250
EAN
4012801203890
Gewicht
5.6000
