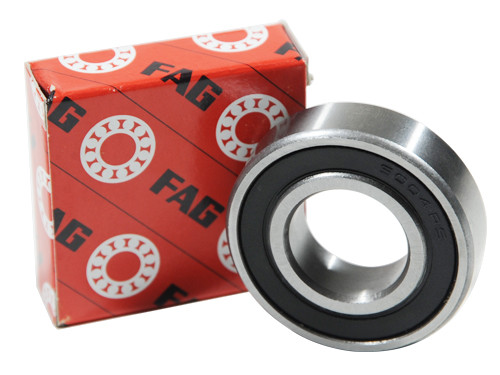

FAG Kogellager 6207 RSR (35x72x17mm)
Product information
This product is made from Staal.
If you have any questions about the FAG Kogellager 6207 RSR (35x72x17mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Easy return
Technical data
Artikelposition
BO473908
O.E.M. Nummer
Nein
RS, kant, kunststof, afdichting, FAG, Kogellager, 6207, RSR, 35x72x17mm.
Brand
Fag
Typ
6207
Seal
RS (1 side rubber seal
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C0 (Standard)

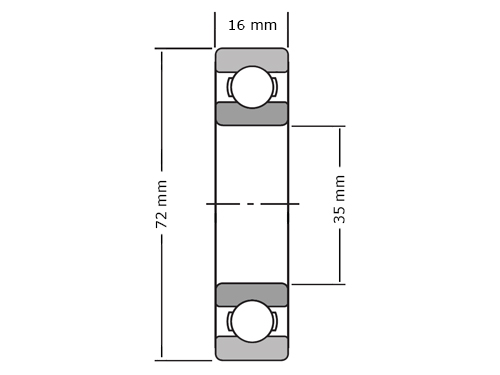

Asdiameter (mm)
35
Buitendiameter (mm)
72
Dikte (mm)
17
Vetsoort
Nicht zutreffend
Temperatuurbereik
-30º tot +100º C
Statisch Draaggetal (N)
15300
Dynamisch Draaggetal (N)
27500
Grenstoerental (tr/min)
5700
Referentietoerental (tr/min)
10400
EAN
4026677820440
Gewicht
0.2910
