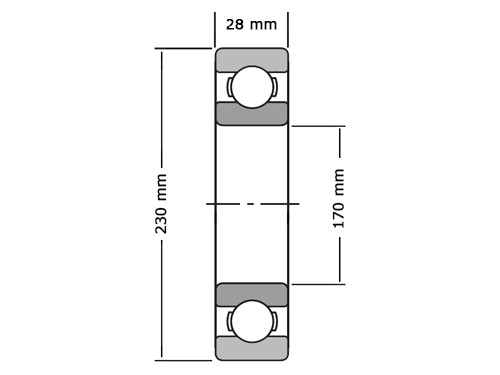

FAG Kogellager 61934 C3 (170x230x28mm)
Product information
This product is made from Staal.
If you have any questions about the FAG Kogellager 61934 C3 (170x230x28mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO866854
O.E.M. Nummer
Nein
FAG, Kogellager, 61934, C3, 170x230x28mm.
Brand
Fag
Typ
6934/61934
Seal
No seal
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C3
Asdiameter (mm)
170
Buitendiameter (mm)
230
Dikte (mm)
28
Vetsoort
Nicht zutreffend
Temperatuurbereik
-30º tot +150º C
Statisch Draaggetal (N)
114000
Dynamisch Draaggetal (N)
109000
Grenstoerental (tr/min)
3800
Referentietoerental (tr/min)
3150
EAN
4012801275828
Gewicht
2.7500
