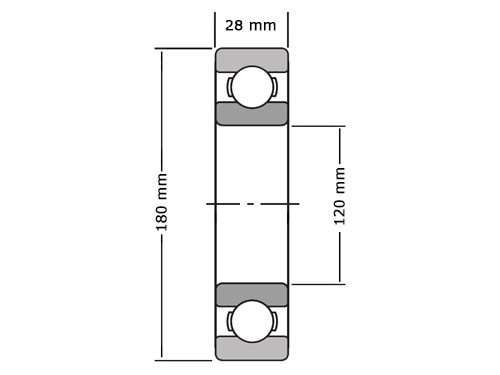

FAG Kogellager 6024 C4 (120x180x28mm)
Product information
This product is made from Staal.
If you have any questions about the FAG Kogellager 6024 C4 (120x180x28mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO272260
O.E.M. Nummer
Nein
Zonder, afdichting, FAG, Kogellager, 6024, C4, 120x180x28mm.
Brand
Fag
Typ
6024
Seal
No seal
Material
Staal
Materiaal Type
Nicht zutreffend
Buitenring
Zonder flens/groef
Kooi
Plaatstaal
Boring
Cilindrisch
Details
Nein
Tolerance Class
C4
Asdiameter (mm)
120
Buitendiameter (mm)
180
Dikte (mm)
28
Vetsoort
Nicht zutreffend
Temperatuurbereik
-30º tot +150º C
Statisch Draaggetal (N)
77000
Dynamisch Draaggetal (N)
88000
Grenstoerental (tr/min)
5000
Referentietoerental (tr/min)
4450
EAN
4012801077767
Gewicht
2.0880
