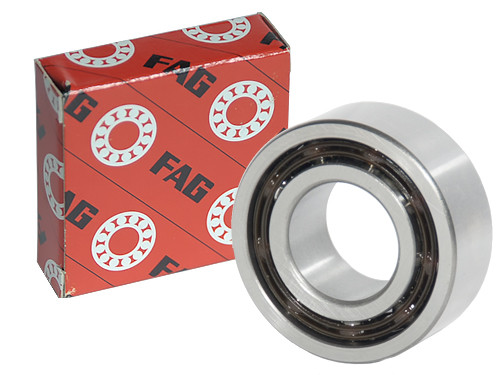

FAG Hoekcontactlager Tweerijig 3309 BD XL C3 (45x100x39.7mm)
Product information
If you have any questions about the FAG Hoekcontactlager Tweerijig 3309 BD XL C3 (45x100x39.7mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO352064
FAG, Hoekcontactlager, Tweerijig, 3309, BD, XL, C3, 45x100x39.7mm.
O.E.M. Nummer
Nein
Brand
Fag
Typ
3309
Seal
No seal
Buitenring
Nicht zutreffend
Kooi
Nicht zutreffend
Asdiameter - d (mm)
45
Buitendiameter - D (mm)
100
Dikte - B (mm)
39.7
r min (mm)
1.5
Statisch Draaggetal (N)
54000
Dynamisch Draaggetal (N)
72000
Grenstoerental (tr/min)
7300
Referentietoerental (tr/min)
6700
Temperatuurbereik
-30º tot +150º C
Vetsoort
Nicht zutreffend
Tolerance Class
C3
Gewicht
1.3500
EAN
4012802672459
