FAG Hoekcontactlager Tweerijig 3306 BD 2HRS TVH C3 (30x72x30.2mm)
Product information
If you have any questions about the FAG Hoekcontactlager Tweerijig 3306 BD 2HRS TVH C3 (30x72x30.2mm), don't hesitate to contact us.
For ordering greater numbers don't hesitate to send us a quotation request.
Share this product on social media!
- Free shipping within The Netherlands
- Easy return
Technical data
Artikelposition
BO778071
FAG, Hoekcontactlager, Tweerijig, 3306, BD, 2HRS, TVH, C3, 30x72x30.2mm.
O.E.M. Nummer
Nein
Brand
Fag
Typ
3306
Seal
2RS (2 sides rubber seal)
Buitenring
Nein
Kooi
Nein

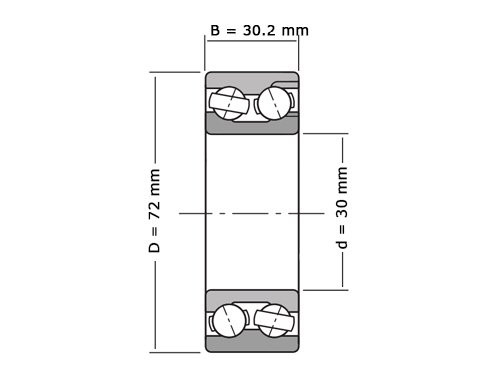

Asdiameter - d (mm)
30
Buitendiameter - D (mm)
72
Dikte - B (mm)
30.2
r min (mm)
Nein
Statisch Draaggetal (N)
29500
Dynamisch Draaggetal (N)
43000
Grenstoerental (tr/min)
7800
Referentietoerental (tr/min)
Nein
Temperatuurbereik
-20º tot +100º C
Vetsoort
Nein
Tolerance Class
C3
Gewicht
0.5400
EAN
4012802478044
